HD-OEM: 2801-36
Part Number: 51-1040
UOM: 1 - EA

Summary:

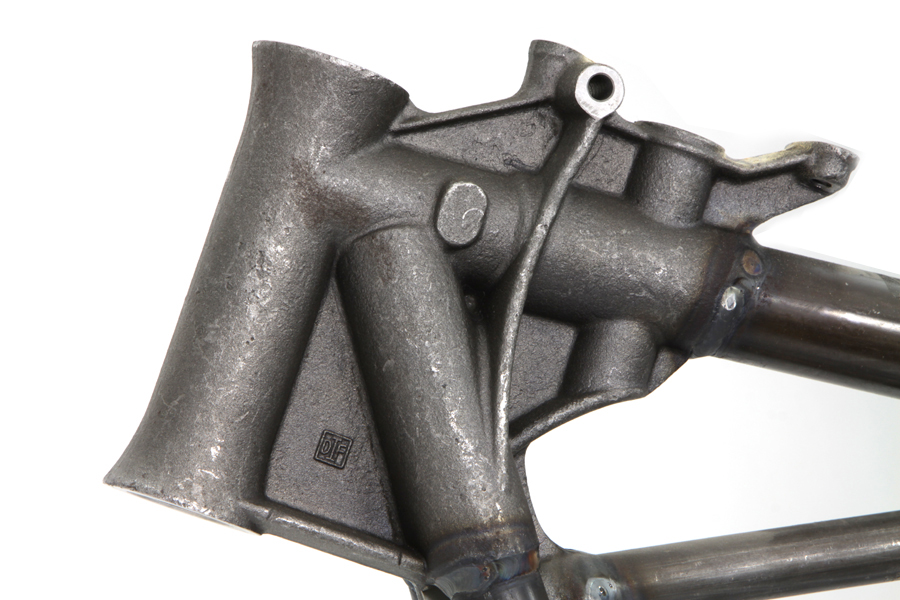

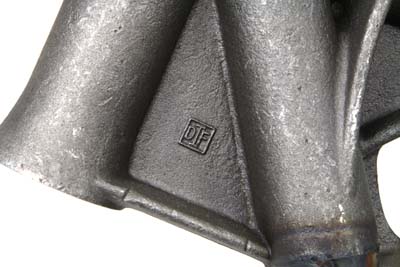

Replica frame is an authentic reproduction of the factory style with 13 brazed joints. The 28 degree rake neck angle will accept inline spring forks. Frame features 1" down tubes with weld on sidecar mounts specific to the 1936 model only! Accepts Knucklehead or BT Flathead engine and 3 or 4-speed transmission. Includes seat post, brake cross shaft, rear axle assembly, transmission plate and a motor alignment plate for safer shipping. Cross shaft bushings, tool box mount, and grease fittings are installed. Forged parts: Neck with original DIF forging marks, front and rear engine mounts, yoke and rear axle plates. Brazed parts: Top motor mount, front tank mount, sidecar loops, footboard mount, transmission strap, center post strap, rear fender cross bar saddles, oil tank mount and upper rear frame bars at tank tube. **NOTE: For original look on rear axle plates, the rear brake slot on the left side must be cut out at the front. We have left this " closed" for builder to remove as desired. **NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. For this reason frames will not be accepted for return (RGA). **NOTE: In lieu of a serial number, a Manufacturer's Statement of Origin is available *Note: UPS may consider


Fitment: EL 1936-1936


Tech. Notes:
Knucklehead frame requires purchase of clamp on coil bracket kit #49-0099. In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame. Horizontal frame cross bar features 7/8" O.D.tubing.

Country of Origin: Imported
