Part Number: 38-0639
UOM: 1 - EA

Summary:

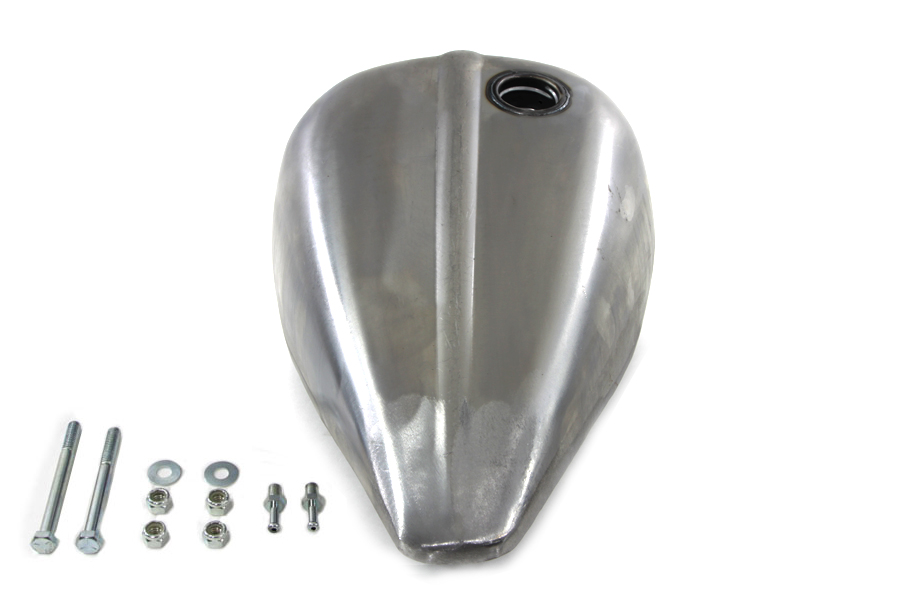

Bobbed gas tank accepts a left side petcock and has a fuel capacity of 2.3 gallons. Tank includes mounting hardware. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. Check petcock opening, making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. Order vented bung cap separately. Relocation of the ignition coil may be required on some models, to do so order motor mount separately. *Note: UPS may consider this part as packaged " oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.

Style: Bobbed

Fitment: XL 1982-2003


Tech. Notes:
Suggested to use with #31-0713 Chrome Top Motor Mount to relocate the ignition coil.

Measurements: Top Length: 18-1/2" Bottom Length: 16" Tunnel Length: 18-1/4" Tunnel Width: 2-3/4" Front Tab Width: 2-1/2" Rear Tab Width: 2-1/8"

Country of Origin: Imported
