Part Number: 49-2400
UOM: 1 - EA

Summary:

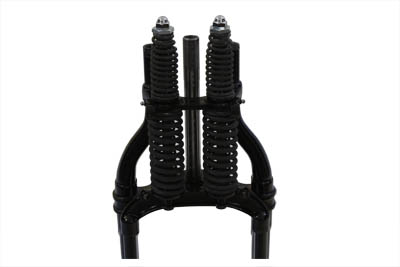

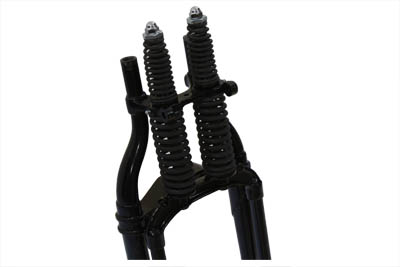

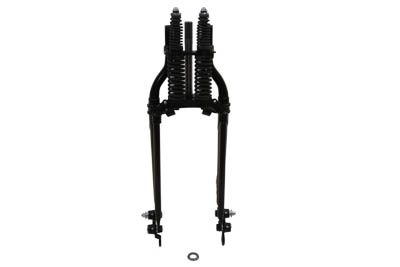

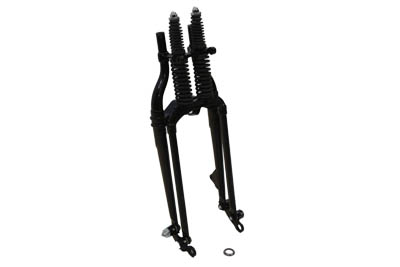

Stock replica spring fork assembly accepts all original style components and accessories for a detailed restoration look. Assembly includes inner and outer springs, frint and rear legs, inside rockers for a 3/8" axle, spring rod with bushings and internal brake wheel with all studs and bushings. Top clamp, neck races, and cone nut are not included. Some assembly may be required. 1" tubes on rear legs are tapped 3/4" -16 to accept threaded riser bushing set, with this installed the builder can use a triple tree without ears and choice of post riser set. The stem is 7/8" . Assembly is a product of 14 separate processes: Tubing, Hydraulic Swage Press, Investment Casting, Forging, Flattening Press, Robotic Welding, Brazing, Polish, Chrome, Paint, Spring Winder, Machine Shop, Drill Shop and Packaging. *Note: UPS may consider this part as packaged " oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.


Fitment: WL 1936-1952


Tech. Notes:
Suggested to use with #49-1963 Axle.

Measurements: Neck Stem Size: 7/8"

Country of Origin: Imported
